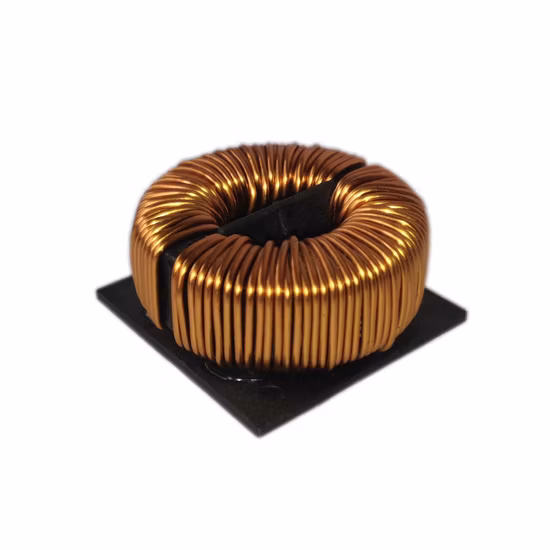

Toroidal Line Filter Choke Coil for Switching Mode Power Supply

Basic Info

Model NO.	NBL016
Type	Choke Inductor
Structure	Inductive Choke
Working Frequency	High Frequency
Structure of Winding	Single Coil
Nature of Operation	Choke Coil
Structure of Magnetizer	Ferrite Coil
Range of Application	Power Measurement
Packaging Form	Power Coils
Brand	Phoegon
Inductor Value	Fixed Inductor
High Frequency Transformer	Electrical Transformer
Wire	Magnet Copper Wire
Working Current	10mA to 200A
Inductance	10uh/Customized
Tolerance	+/-20%
Insulation Class	Class B, Class F, Class H
Operating Temperature	-40ºC to +125ºC
Business	Own Factory Direct Supply
RoHS	Yes
Mode	Common Mode Filter
Core	Mpp
Grade	2K PC30 PC40 PC44 5K 7K 10K
Shape	Vertical , Horizontal
Material	Mn-Zn , Ni-Zn , Phenolic
Flyback Transformer	Inductor
Transport Package	in Blister Tray and Carton, to Be Stacked on Palle
Specification	OD: 10--100mm
Trademark	Phoegon
Origin	Qingdao, China
HS Code	85045000
Production Capacity	50000 PCS/15 Days

Product Description

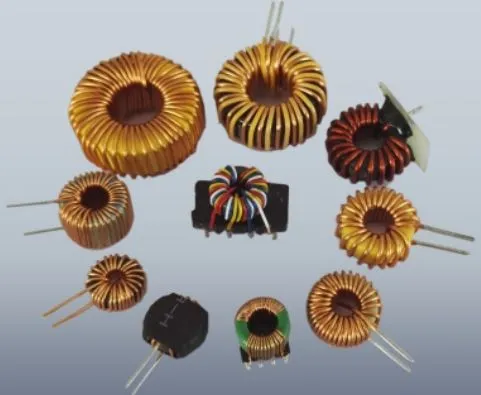

High Frequency Toroidal Choke Power Coil Inductor

Features

1Good frequency characteristics

2.Low leakage loss

3.Primary competitive advantages: Own factory, small order available, ISO9001/ROHS/UL/CE, Oxygen Free magnet wire.

4. consistently controled quality, timely shipment, factory wholesale price, sound packing and relatively competitive price for all customer bases.
